Cabinet Design Multi-spindles ATC Nesting CNC Machine for Wood Furniture Manufacturers

FOB Reference Price:Get Latest Price
$10,000.00 - $18,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ELECNC-1325-4s
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Warranty:
1 year
After-sales Service Provided:
Video technical support
Place of Origin:
China
Brand Name:
BLUE ELEPHANT
Voltage:
AC380V, 3PH, 50/60Hz
Certification:
CE SGS ISO9001 BV TUV
Dimension(L*W*H):
according to your order
Positioning Accuracy (mm):
0.05 mm
Repeatability (X/Y/Z) (mm):
0.05 mm
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Key Selling Points:
Energy saving
Weight (KG):
1500
No. of Spindles:
Multi
Travel (X Axis)(mm):
1300 mm
Travel (Y Axis)(mm):
2500 mm
After Warranty Service:
Video technical support, Online support
Local Service Location:
Egypt, France, Philippines, Brazil, Peru, India, Mexico, Japan, Malaysia, South Korea, Sri Lanka
Showroom Location:
Italy, France, Brazil, Peru, India, Mexico, Morocco, Kenya, Colombia
Working Table Size(mm):
1300×2500
Machine Type:
Nesting CNC Router
Software:
Ucancam / ArtCam / TYPE3
Working area:
1300*2500mm and 1200*2440mm
Total double table size:
1300*6000mm
Spindle:
HQD air cooling spindles
Control system:
Taiwan LNC control system
Table Surface:
Vacuum and T-slot working table
Drive motor:
Taiwan Delta servo motors and drive
Transmission:
Taiwan PMI linear square rail and TBI ball screw
Table:
Vacuum working table with 4 zones for each working area
Weight:
2800KG
Product Certification certification
CE Certified.
Valid from 2016-08-12 until 2021-08-11
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
Port
Tianjin, Qingdao, Shanghai, etc.
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Video Description
Product Description

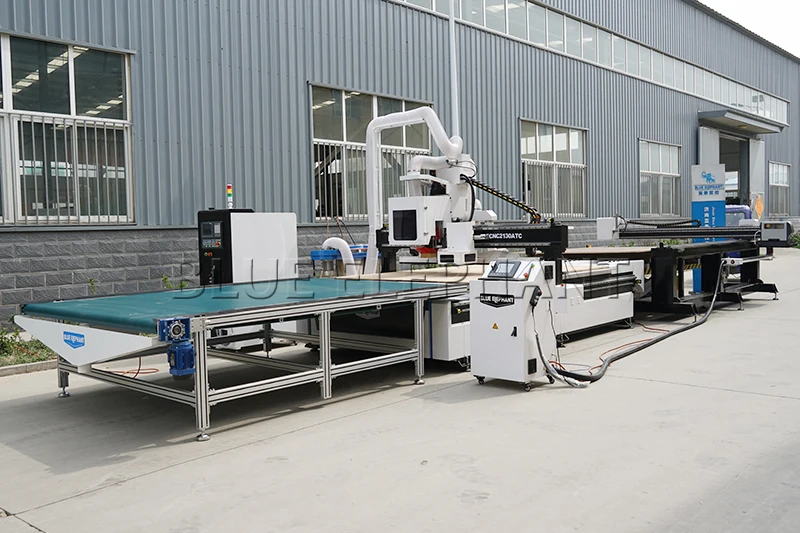

Cabinet Design Multi-spindles ATC Nesting CNC Machine for Wood Furniture Manufacturers

Main Features


This machine design with pneumatic 4 spindle woodworking CNC router. In processing samples working, maybe we need more than 3 different tools to finish different engraving patterns. And the pneumatic 4 spindles wood CNC router can shorten the time of tool-changing and tool-setting. Different from other machines, this machine design bi-zone for double working table. As you can there are double working table, when the spindles are working on one working area, we could clean up another area, and put a new wood/MDF plate on it.


1.Four spindles, changing different tools by changing the spindles automatically one by one.
2.Built to satisfy the demands of the professional Cabinet making.
3.Fast gantry movement with servo motors and drivers.
4.Accurate control with LNC-2200 control system.
5.The whole machine is welded with thick seamless steel structure, the stability is good, not easy to be deformed. The machine adopts gantry movement, it can process any kinds of materials freely.


Product Application

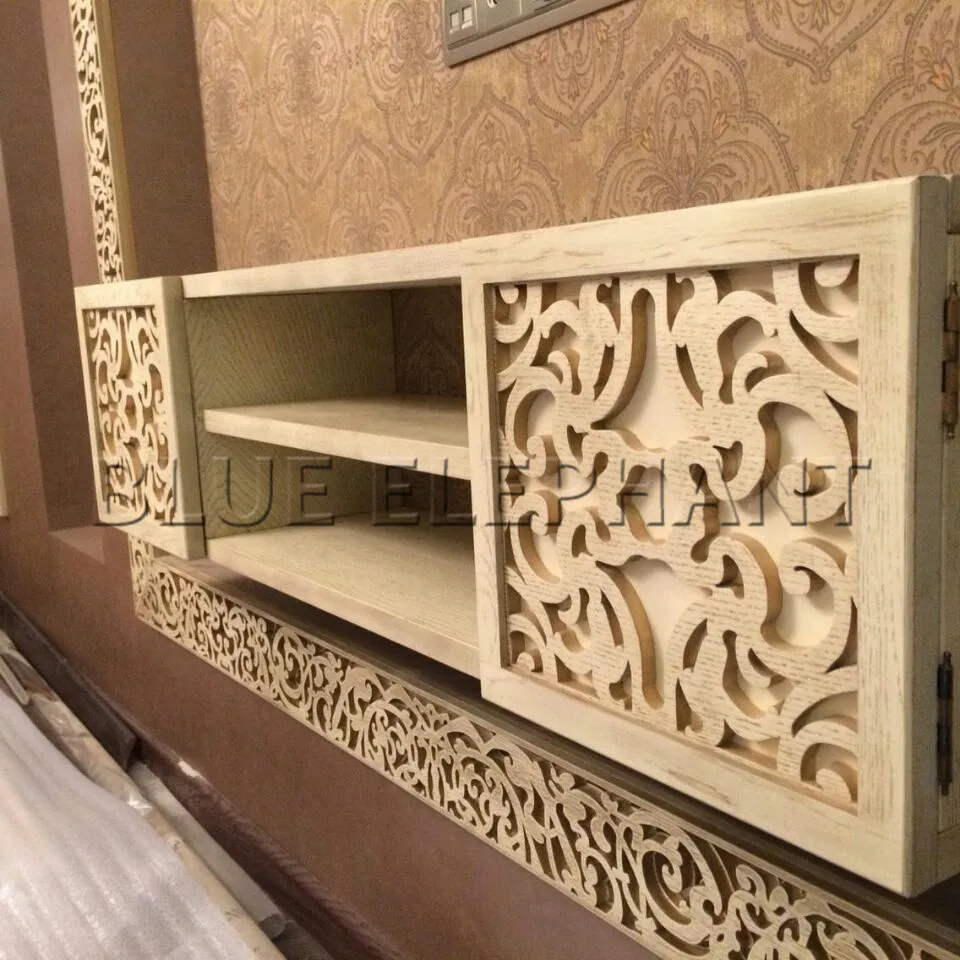

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.


3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


Technical parameters

Description
Parameter
Product Name
1325 Bi-Zone Pneumatic 4 Spindles CNC Router Machine
Travel Size
1300*6000mm
Structure
10-12mm New type thicker and bigger heavy duty welded frame and gantry
Working Size
1300*2500mm (bi- zone)
Table Size
1200*2440mm (bi- zone)
Table Surface
Vacuum working table with 4 zones for each working area
Spindle
HQD air cooling spindles
X,Y,Z Axis Rail
Taiwan PMI linear square rail
X, Y Structure
Helical rack for X,Y axis
Z Structure
Taiwan TBI ball screw for Z axis
Motor and driver
Taiwan Delta servo motors and drivers
Inverter
3.7kw Taiwan Delta Inverter
Lubrication System
Semi-automatic lubrication system

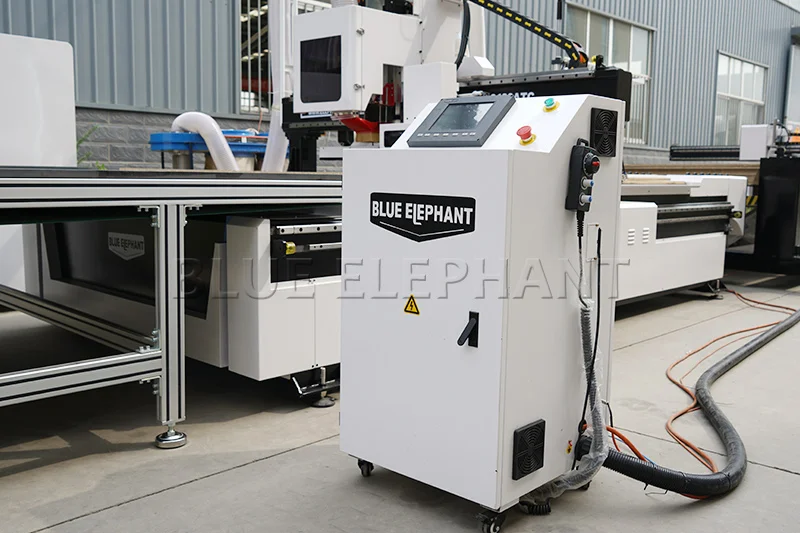

Control System
Taiwan LNC control system
Positioning Cylinder
12 sets
Software Compatibility
Artcam Software
Tool sensor
Automatic tool sensor
Details part

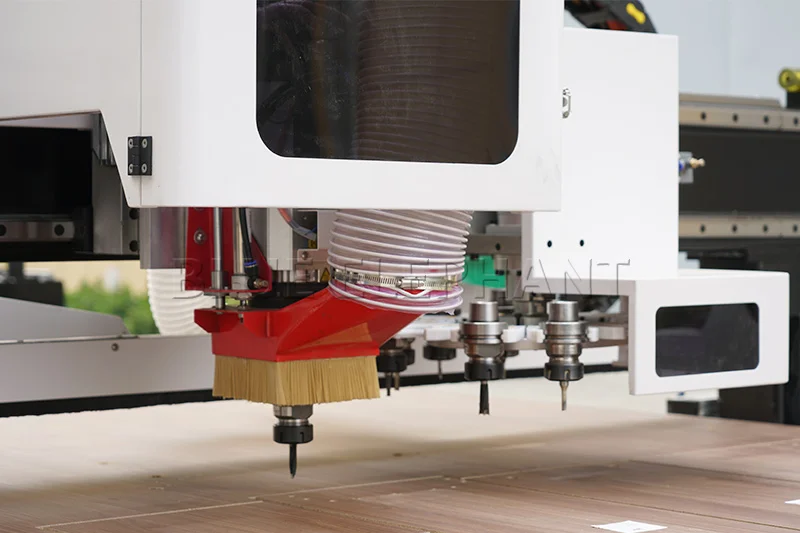

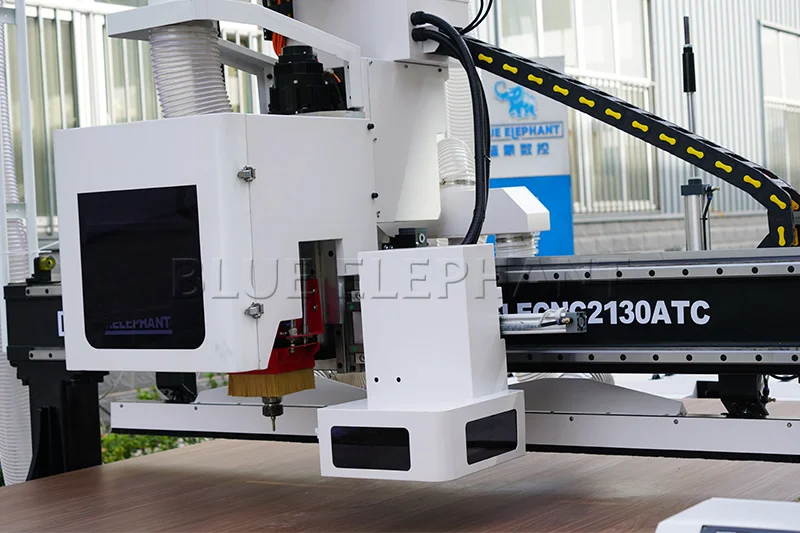

Spindle

HQD air cooling spindles

Spindle

HQD air cooling spindles

Tool Sensor

Automatic tool sensor

Pneumatic duplex

Guarantee smooth processing

Optional part
Auto tool change
Drilling head
Oscillating knife
Hot Sale Products
Certifications

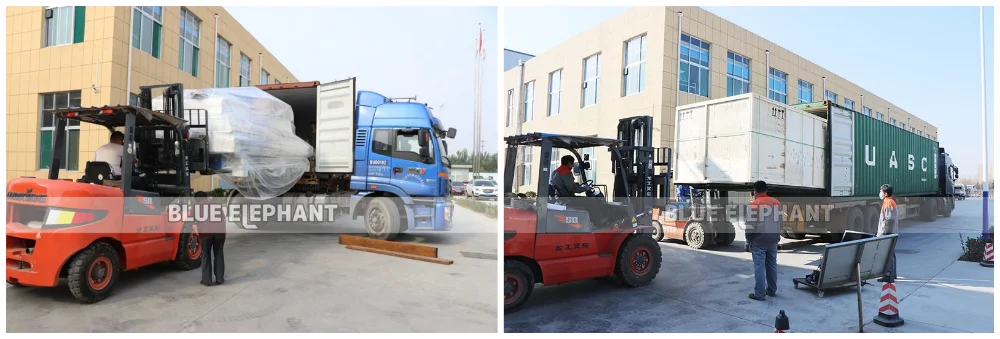

Packing & Delivery
Packaging
Size
1900(L)*1900(W)*1700(H) mm
Weight
1500kg
Packaging Details
Packaging Improving:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Our Service

Guarantee and After-sale service


1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.

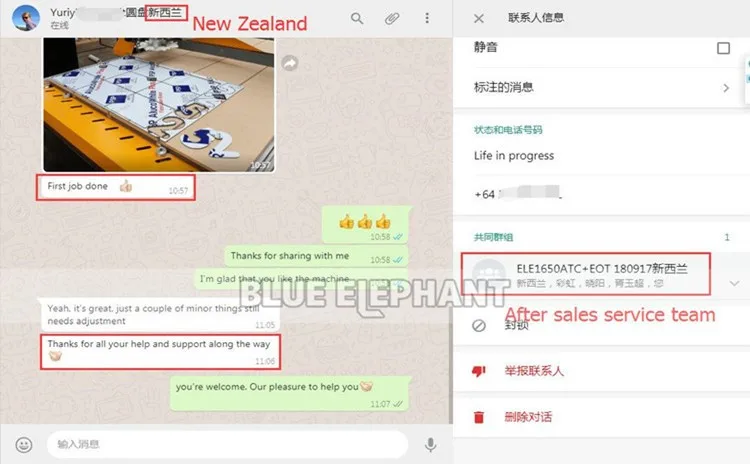

Customers feedback

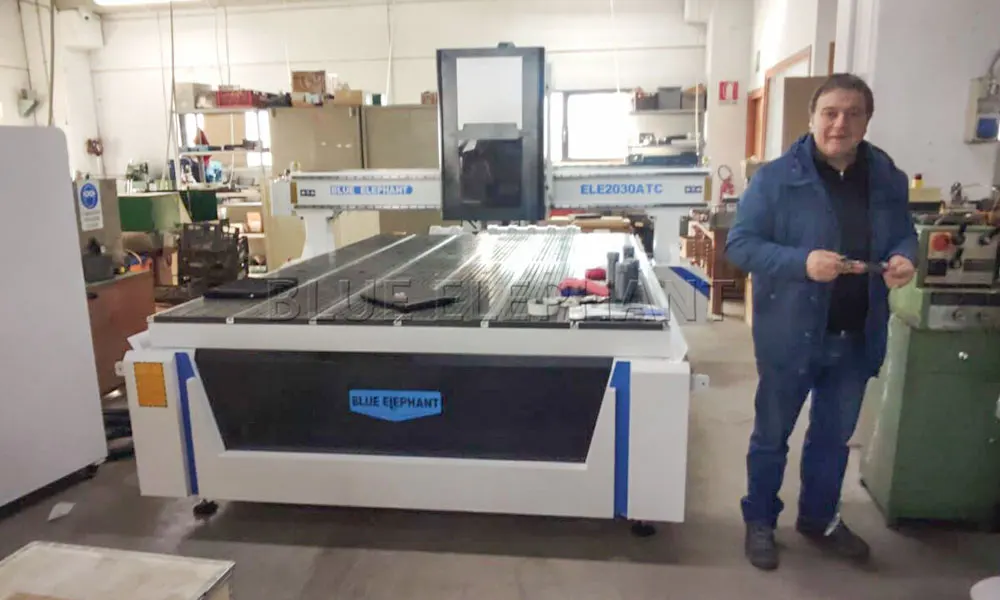

Customer visiting

Every year ,there are many foreign friends come to visit our company and factory. Every time they come, our engineers and the salesman will accompany them to visit, and invited them to eat Chinese food. If they have time, we will also introduce Chinese places of interest and traditional culture to them, let them have a satisfactory trip in China! So, dear friend, if you are very interested in China, our company and our products, welcome to China, welcome to our company and factory!


Customers Video

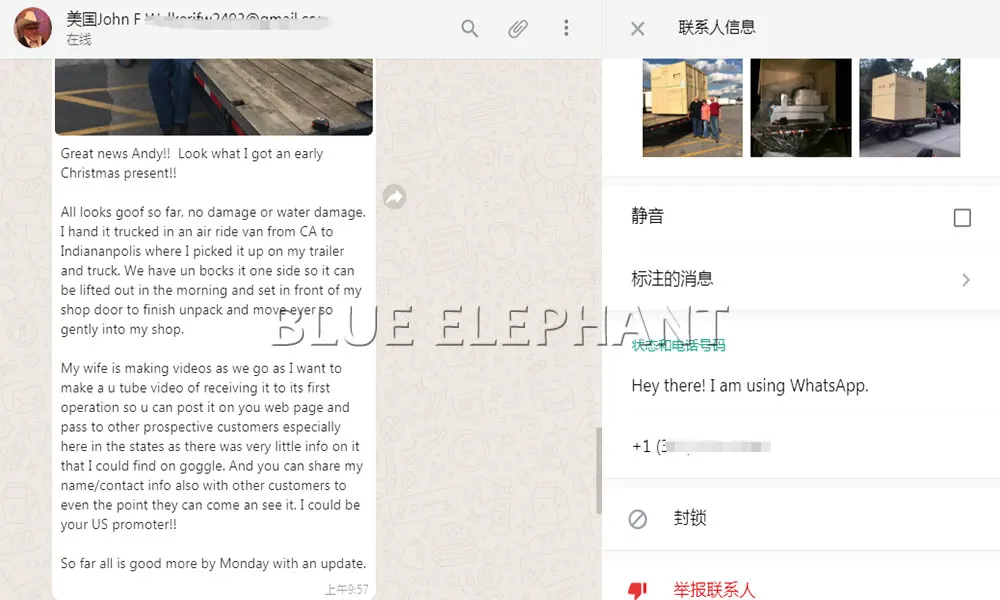

Canadian customer feedback
